Removing the Hyundai Creta Spare Tire and Tool Kit

Note:

If a problem of deflation or a tire puncture is detected, when the tire is significantly damaged and is not suitable for repair, it is necessary to replace the wheel with a spare one.

Hyundai Creta comes standard with a full-size spare wheel on a 16-inch steel rim.

In modern cars, there are 2 types of spare wheels:

• full size;
• compact "dokatka".

The compact spare tire is much narrower than the stock wheels. Its side surface is marked with the inscription TEMPORARY USE ONLY (only for temporary use). This type of wheel is intended only to get to the tire shop. It is not suitable for long term use.

As a rule, the "stowaway" is marked with the designation of the maximum allowable speed.

Warning:

Be careful: when using the spare wheel, do not exceed the speed limit of 80 km/h.

Removing the Hyundai Creta Spare Tire and Tool Kit

1. Place the vehicle on a level surface and turn off the ignition.

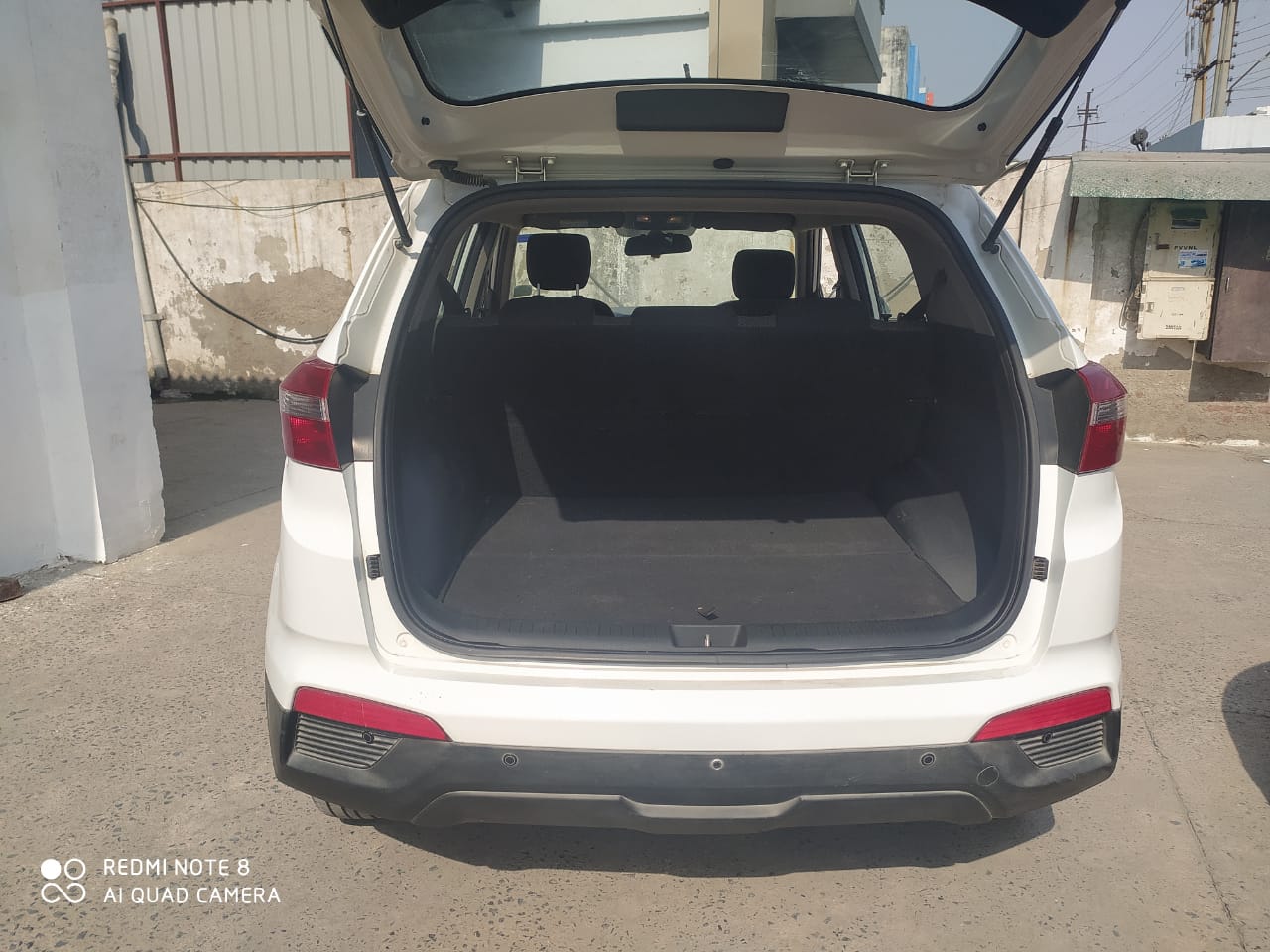

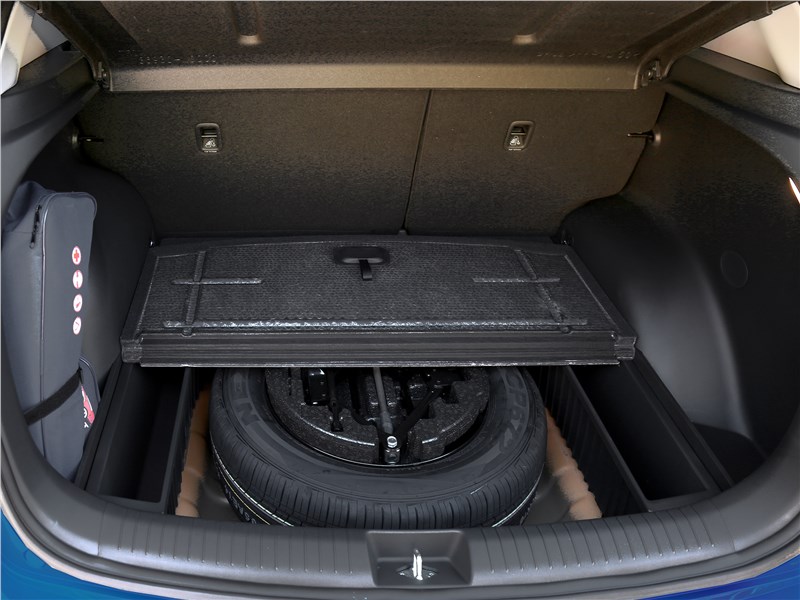

2. Open the luggage compartment. The spare wheel and tool kit are located in a recess under the boot floor trim.

3. Pull out the rubber mat (if any) from the trunk.

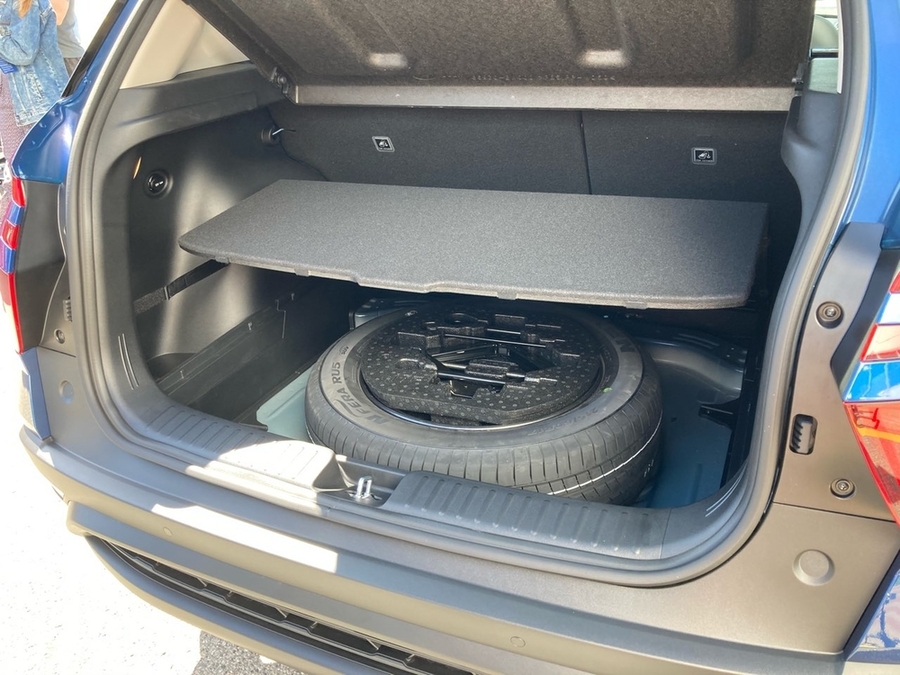

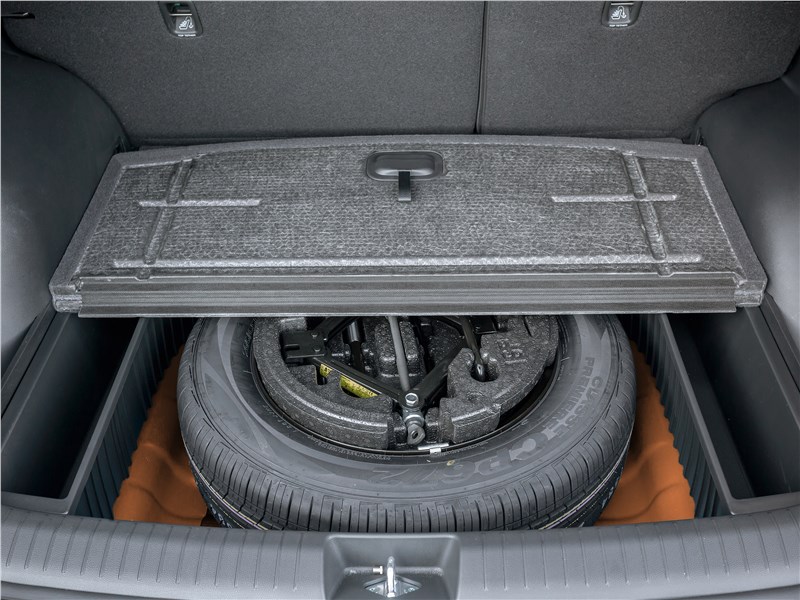

4. Lift up the reserve cover.

5. Remove the lodgement from the wheel.

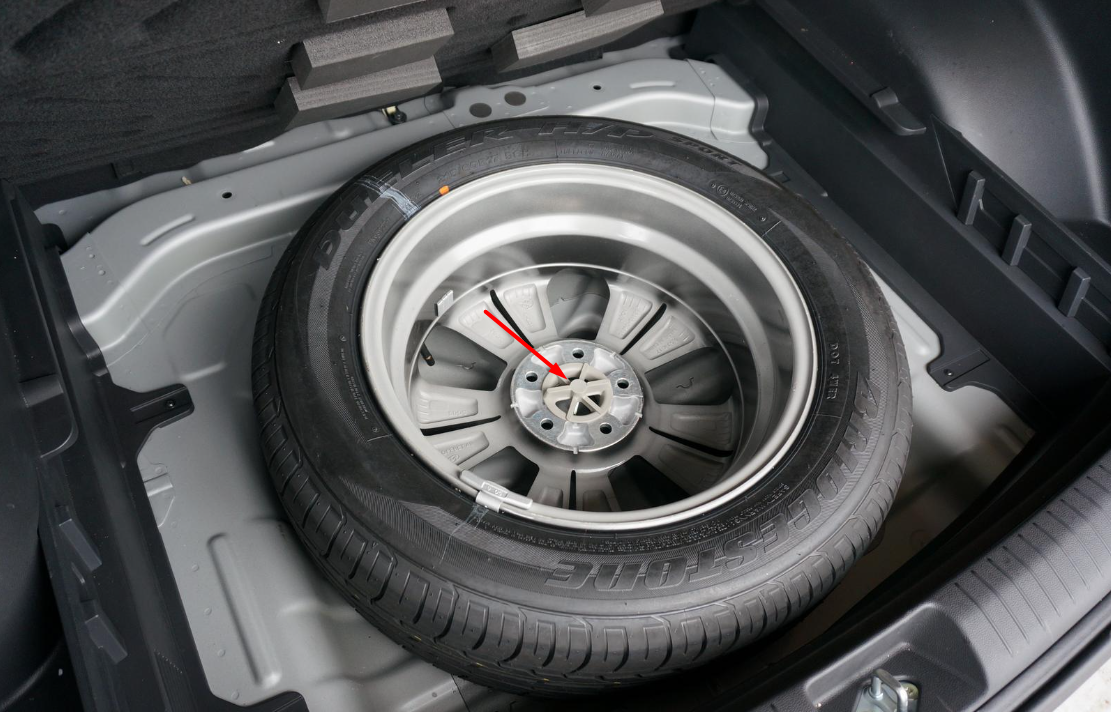

6. Loosen the spare wheel bolt using the hex wrench. Then unscrew the bolt by hand.

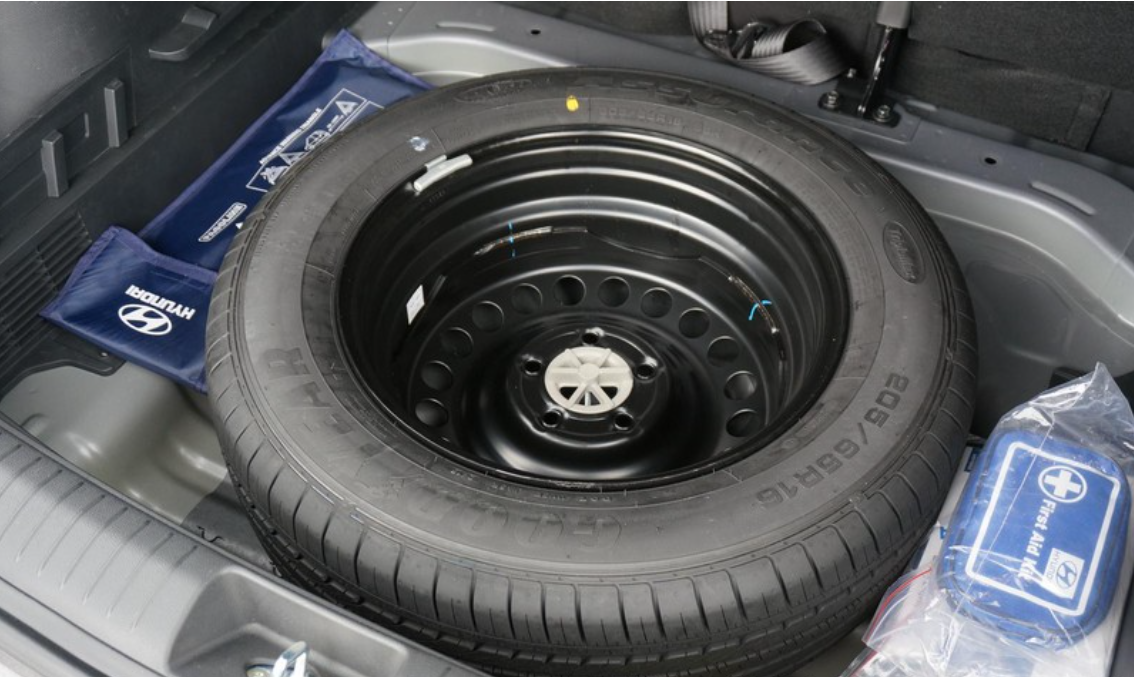

full size

"Dokatka" or "reserve"

7. Pull the spare tire out of the Hyundai Creta trunk.

8. Replace the defective wheel with a spare.

Note:

How to replace the wheel yourself, you can read in the article "Changing a Hyundai Creta wheel".

9. Gather all tools and remove the wheel in reverse order.

Hyundai Creta wheel change tool kit

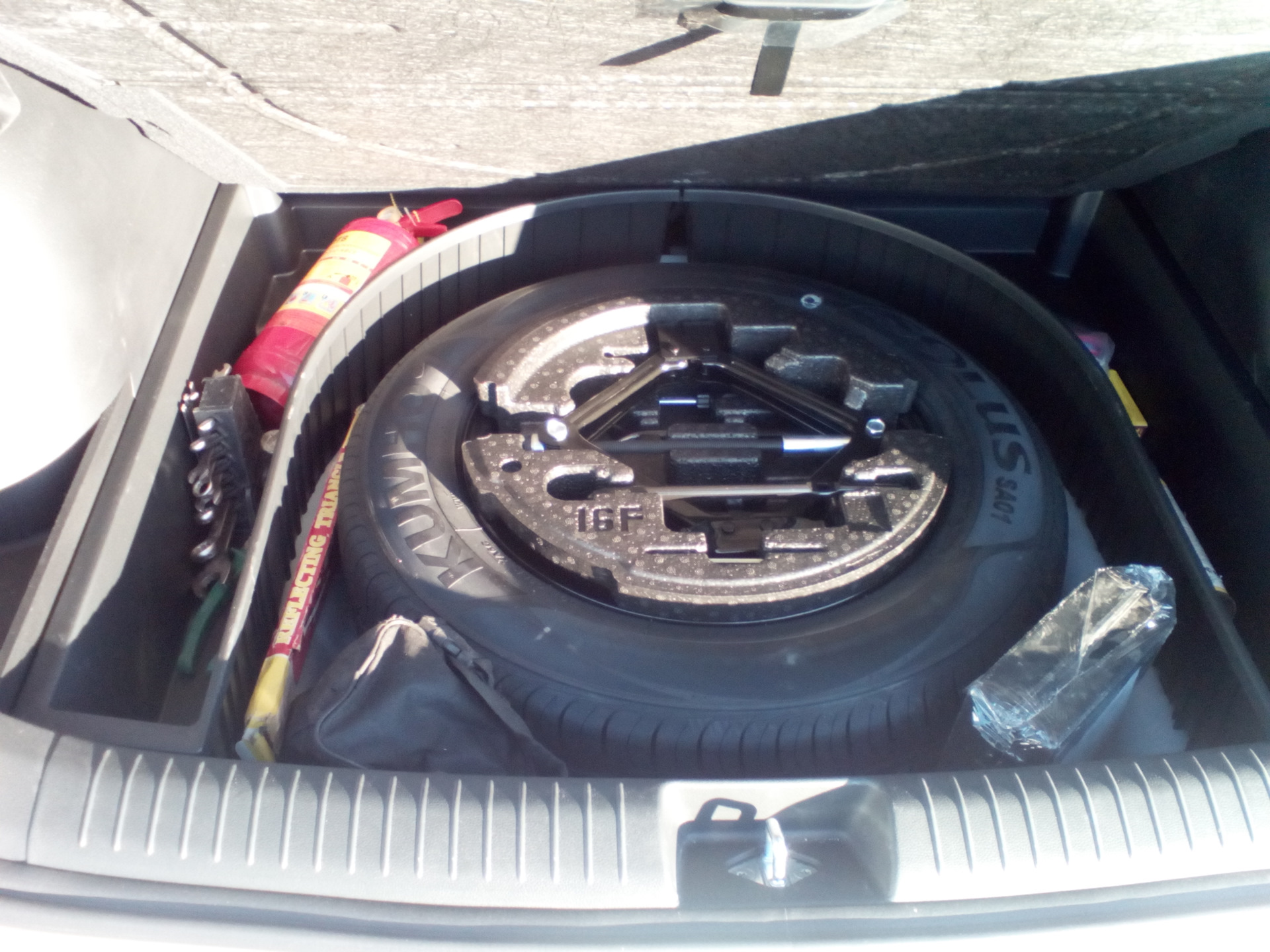

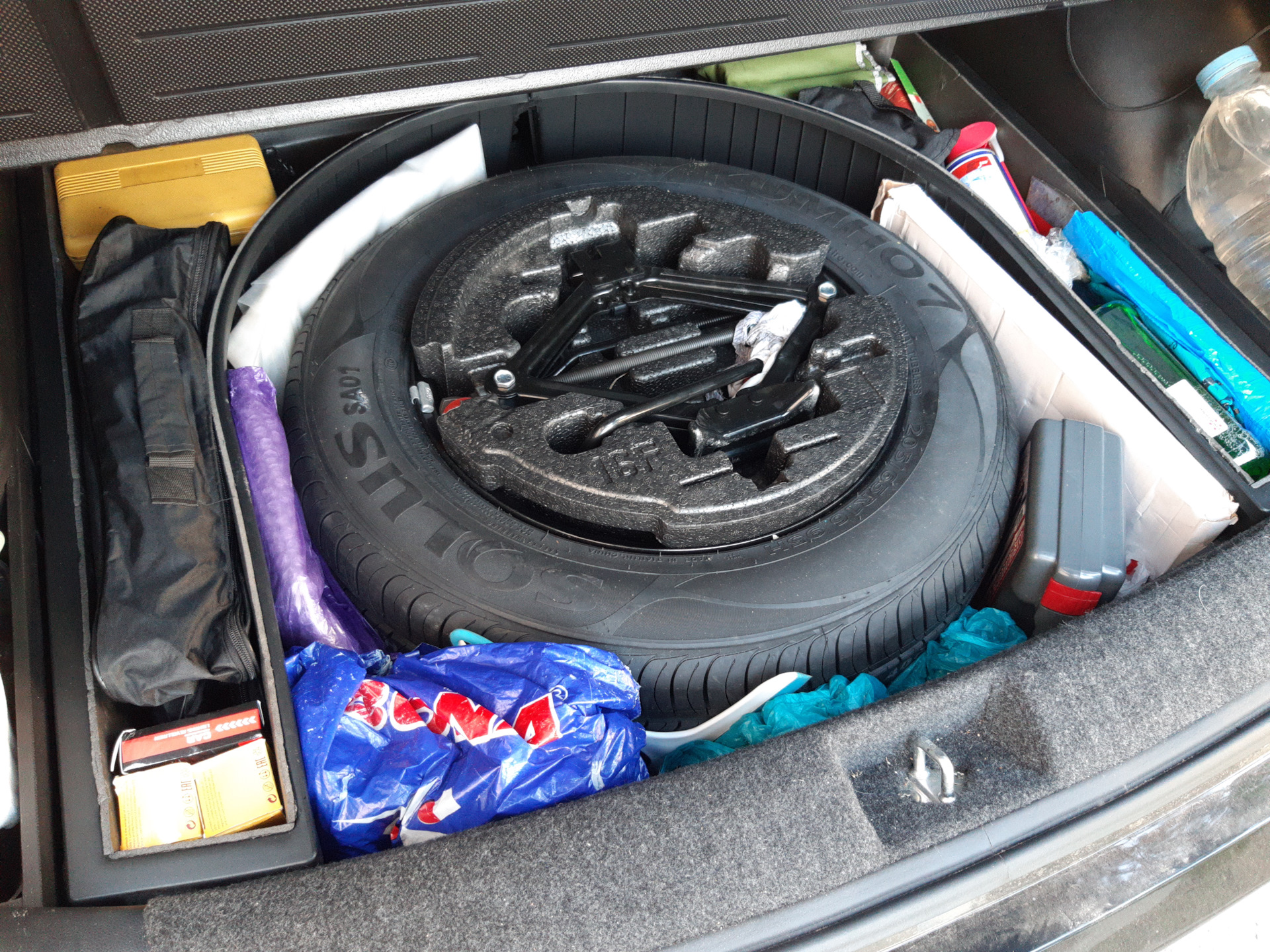

The standard tool is folded into a lodgement. The lodgement is in a niche of a disk of a spare wheel.

Tool kit:


1 - lodgment;

2 - screwdriver;

3 - towing eye;

4 - jack;

5 - knob;

6 - balloon key;

7 - open-end wrench 10x12.
